66 67004

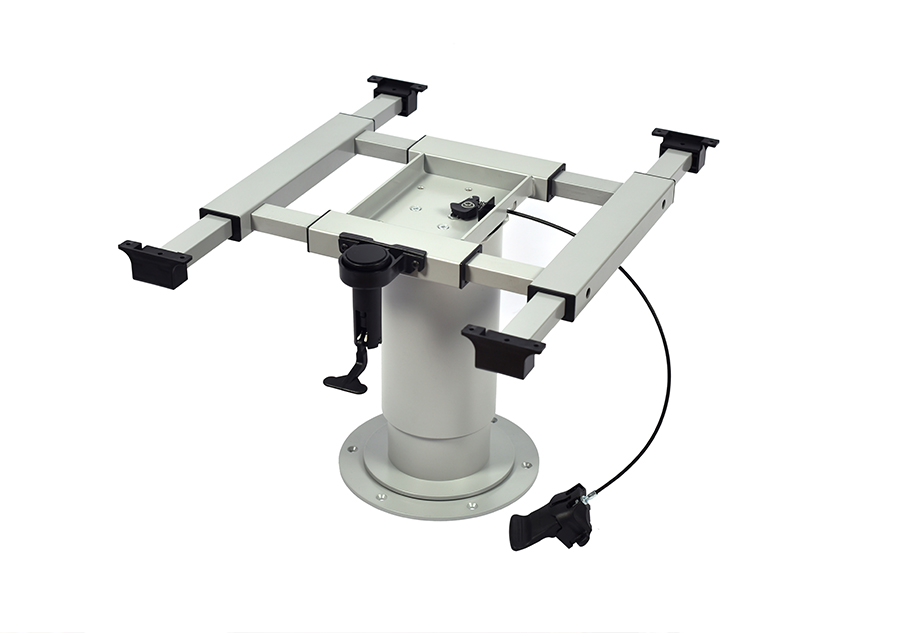

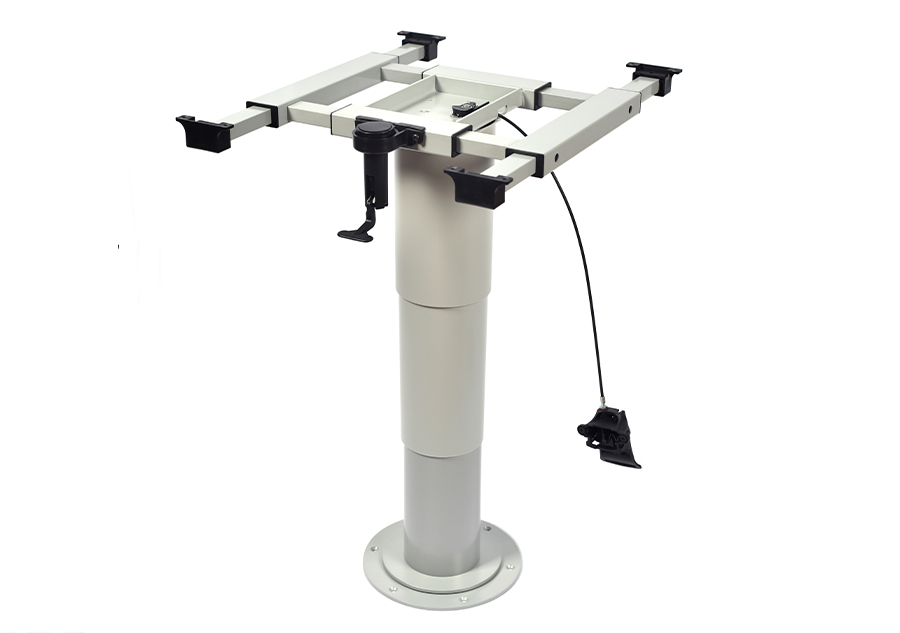

2023 New Model, Aluminum pneumatic lift table leg - Four-direction sliding table frame & 360° rotati

Product introduction

Type:66 67004-Grey

Characteristic:

Sliding table frame size: X-direction 545mm, Y-direction 460mm

Sliding stroke: X direction 185mm, Y direction 150mm

Base plate: Steel double-layer flange chassis, 360° stepless rotation (Φ240mm)

Color:Grey-RAL 9006

Height:362-740(±5mm)

Stroke:378±3mm

Materials:Main parts: aluminum profile, Chassis: steel

Surface treatment:Powder spraying

Net weight:10.70kg

Gross weight:12.10kg

Packing box size:565mm*355mm*423mm

Product Details

Attention:

1. Recommend installing panels of appropriate size (≤800*800);

2. There is an air spring inside, please do not press quickly or forcefully. It is advisable to slowly and uniformly press down;

3. The static bearing capacity of the product is Max ≈ 100kg at the lowest position and Max ≈ 50kg at other heights. Do not stand or jump on the product, do not apply impact or lateral force;

4. The standard temperature range for the product is -15 ℃~+45 ℃;

5. During driving, please try to lower the lifting table to the lowest position or lower the height as much as possible。
