66 67001

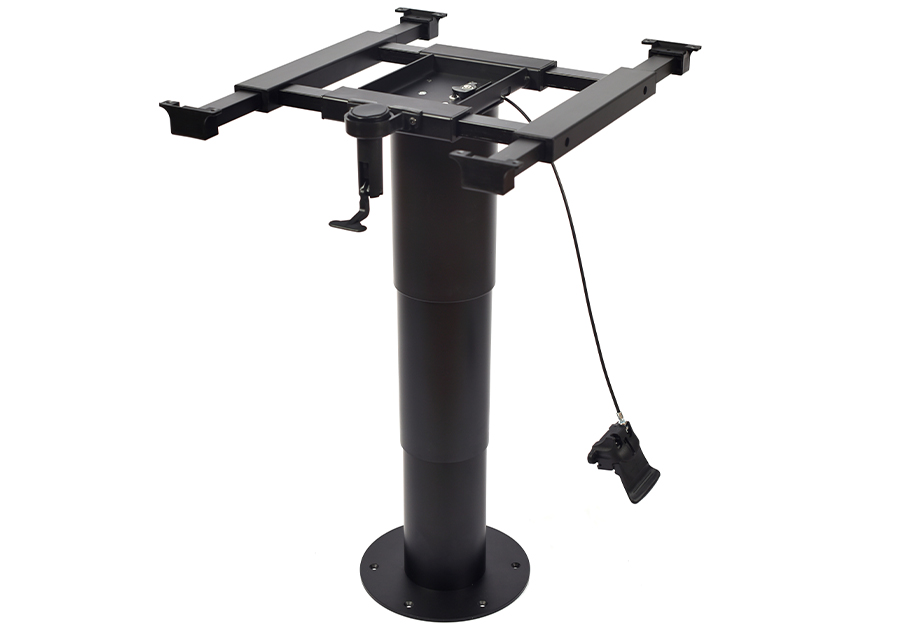

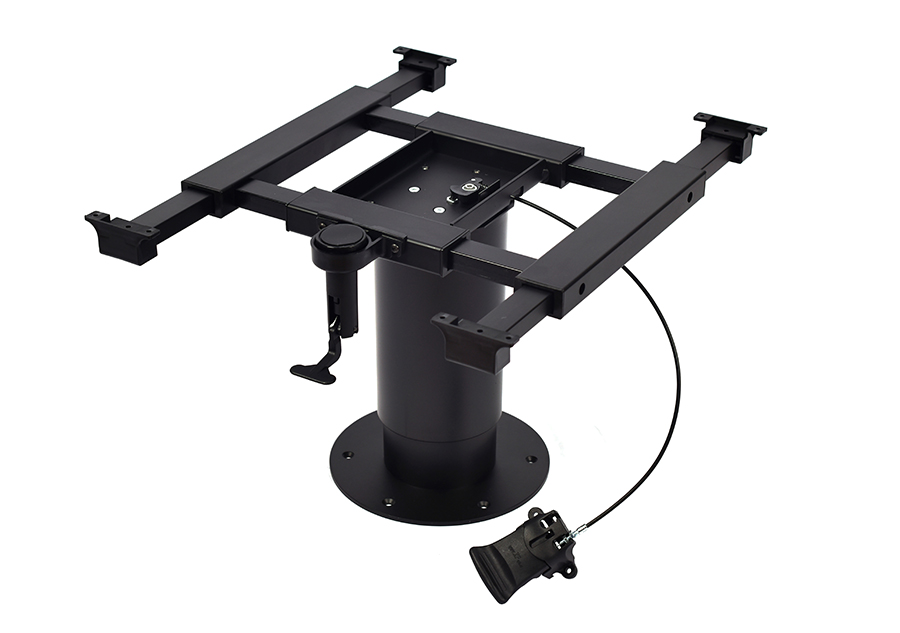

2023 New Model, Aluminum pneumatic lift table leg - Four-direction sliding table frame

Product introduction

Type:66 67001

Characteristic:

Sliding table frame size: X-direction 545mm, Y-direction 460mm

Sliding stroke: X direction 185mm, Y direction 150mm

Base plate: 6-hole steel flange chassis (Φ240mm)

Color:Black-RAL9005 Height:355-730(±5mm) Stroke:375±3mm Materials:Main parts: aluminum profile, Chassis: steel Surface treatment:Powder spraying Net weight:9.75kg Gross weight:11.15kg Packing box size:565mm*355mm*423mm

Product Details

Attention:

  1. Recommend installing panels of appropriate size (≤800*800);

  2. There is an air spring inside, please do not press quickly or forcefully. It is advisable to slowly and uniformly press down;

  3. The static bearing capacity of the product is Max ≈ 100kg at the lowest position and Max ≈ 50kg at other heights. Do not stand or jump on the product, do not apply impact or lateral force;

  4. The standard temperature range for the product is -15 ℃~+45 ℃;

  5. During driving, please try to lower the lifting table to the lowest position or lower the height as much as possible。
