66 63006

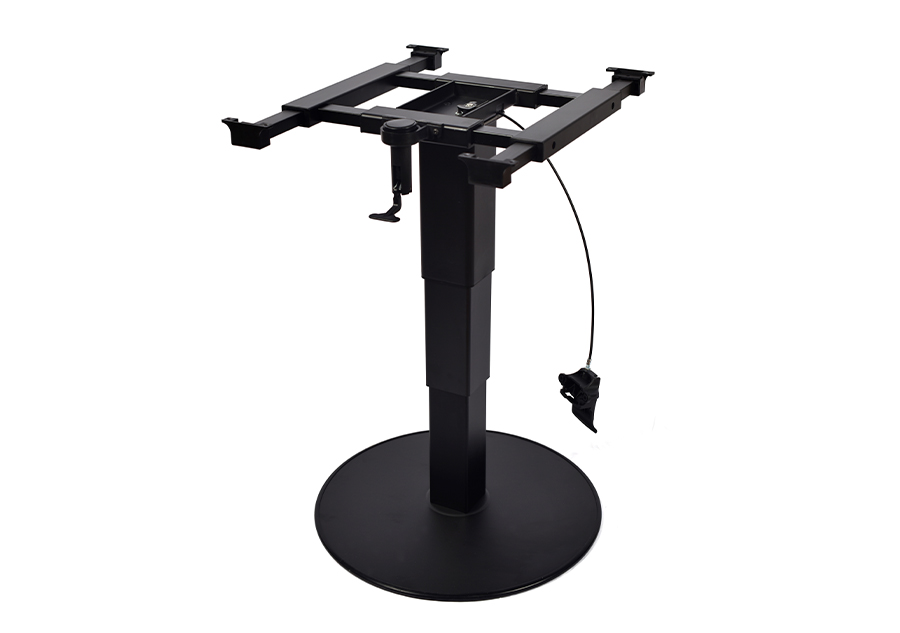

Pneumatic lift table leg - Four-direction sliding table frame &large chassis

Product introduction

Type:66 63006 Characteristic:

Sliding table frame size: X-direction 545mm, Y-direction 460mm

Sliding stroke: X direction 185mm, Y direction 150mm

Base plate: Flowforming chassis (Φ500mm)

Color:Black-RAL9005 Height:359-754(±5mm) Stroke:395±3mm Materials:Steel Surface treatment:Powder spraying Net weight:12.50kg Gross weight:14.00kg Packing box size:550mm*570mm*400

Product Details

Attention:

  1. Recommend installing panels of appropriate size (≤800*800);

  2. There is an air spring inside, please do not press quickly or forcefully. It is advisable to slowly and uniformly press down;

  3. The static bearing capacity of the product is Max ≈ 80kg at the lowest position and Max ≈ 40kg at other heights. Do not stand or jump on the product, do not apply impact or lateral force;

  4. The standard temperature range for the product is -15 ℃~+45 ℃;

  5. During driving, please try to lower the lifting table to the lowest position or lower the height as much as possible。
