66 63005

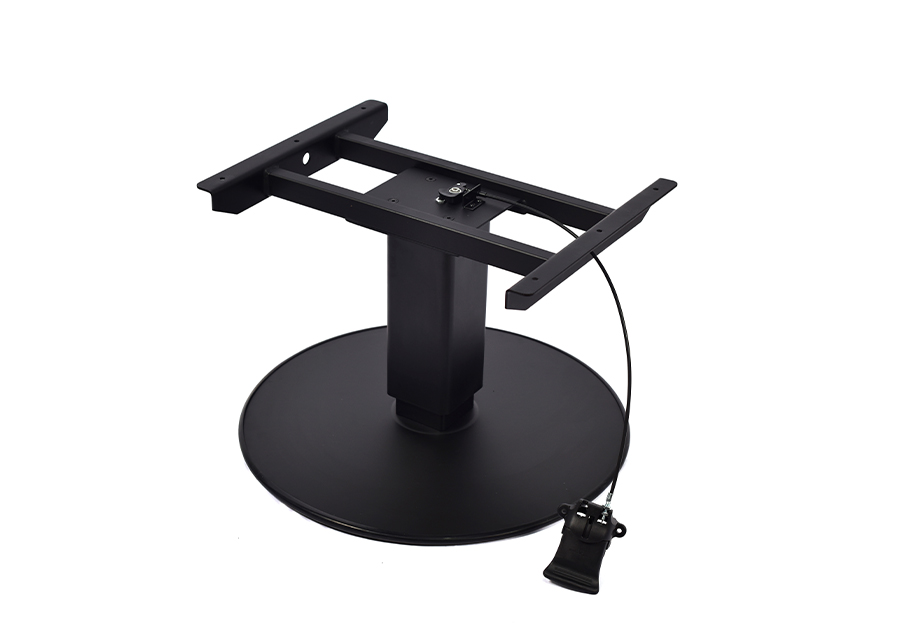

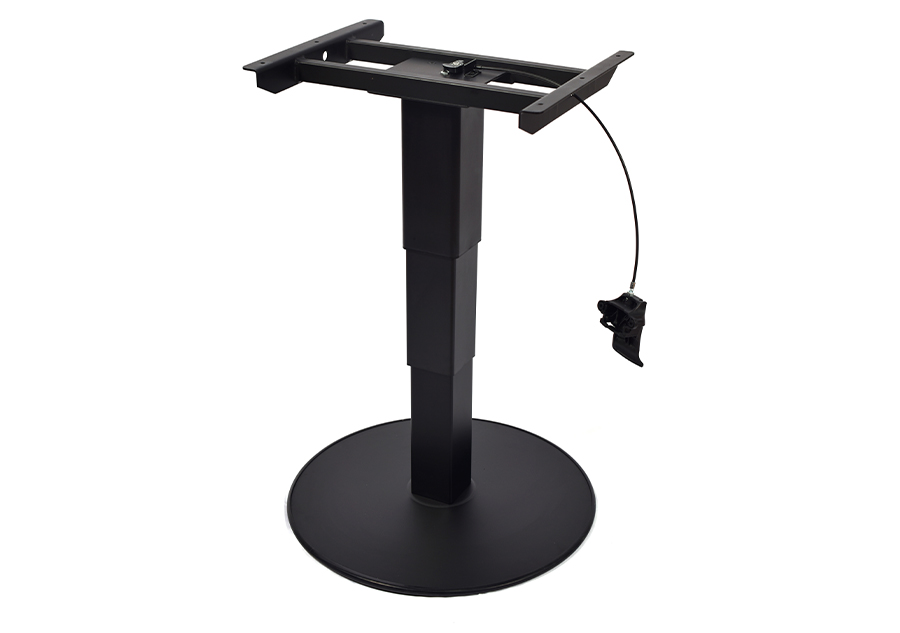

Pneumatic lift table leg - Fixed table frame & large chassis

Product introduction Type:66 63005 Characteristic:

Fixed table frame size: X-direction 460mm, Y-direction 350mm

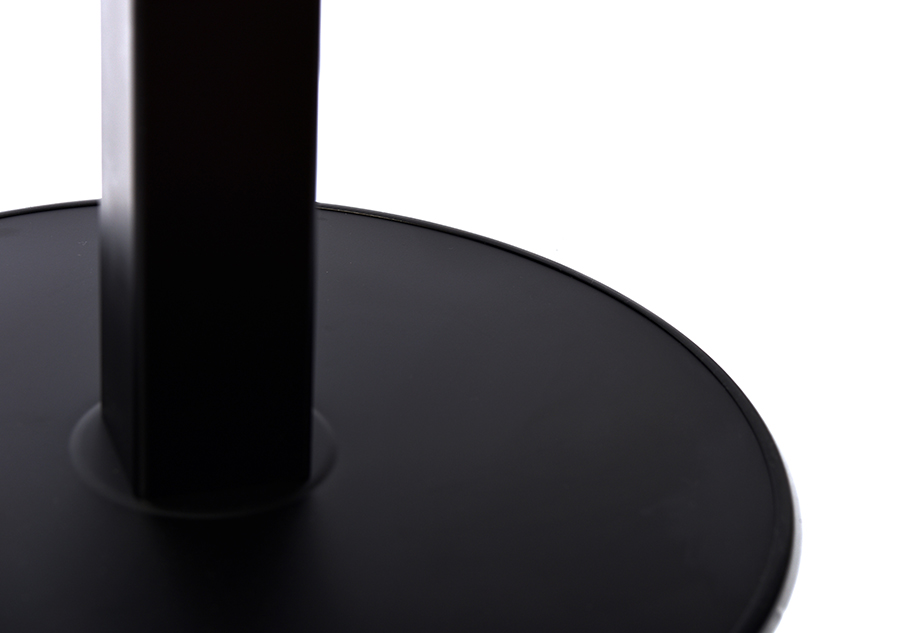

Base plate: Flowforming chassis (Φ500mm)

Color:Black-RAL9005 Height:345-740(±5mm) Stroke:395±3mm Materials:Steel Surface treatment:Powder spraying Net weight:11.60kg Gross weight:13.10kg Packing box size:550mm*550mm*400mm


Product Details

Attention:

  1. Recommend installing panels of appropriate size (≤800*800);

  2. There is an air spring inside, please do not press quickly or forcefully. It is advisable to slowly and uniformly press down;

  3. The static bearing capacity of the product is Max ≈ 80kg at the lowest position and Max ≈ 40kg at other heights. Do not stand or jump on the product, do not apply impact or lateral force;

  4. The standard temperature range for the product is -15 ℃~+45 ℃;

  5. During driving, please try to lower the lifting table to the lowest position or lower the height as much as possible。
