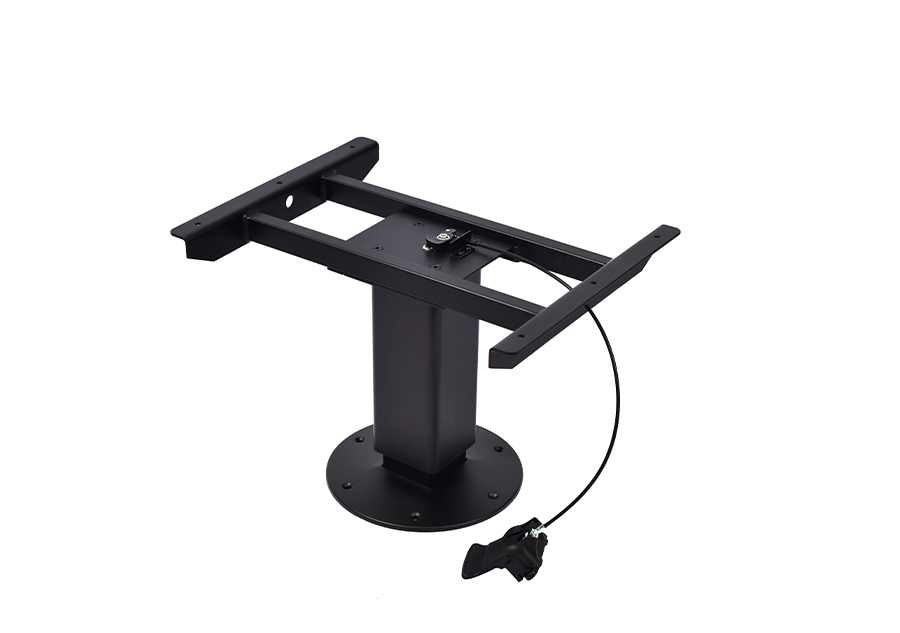

Product introduction Type:66 63003 Characteristic:Fixed table frame size: X-direction 460mm, Y-direction 350mm
Base plate: 6-hole cast aluminum flange (Φ240mm)
Color:Black-RAL9005 Height:327-722(±5mm)
Stroke:395±3mm Materials:Steel, Aluminum alloy Surface treatment:
Powder spraying Net weight:9.00kg
Gross weight:10.50kg
Packing box size:565mm*355mm*423mm
Attention:
Recommend installing panels of appropriate size (≤800*800);
Optional fixed chassis or 360 ° rotating chassis;
There is an air spring inside, please do not press quickly or forcefully. It is advisable to slowly and uniformly press down;
The static bearing capacity of the product is Max ≈ 80kg at the lowest position and Max ≈ 40kg at other heights. Do not stand or jump on the product, do not apply impact or lateral force;
The standard temperature range for the product is -15 ℃~+45 ℃;
During driving, please try to lower the lifting table to the lowest position or lower the height as much as possible。
