66 35002

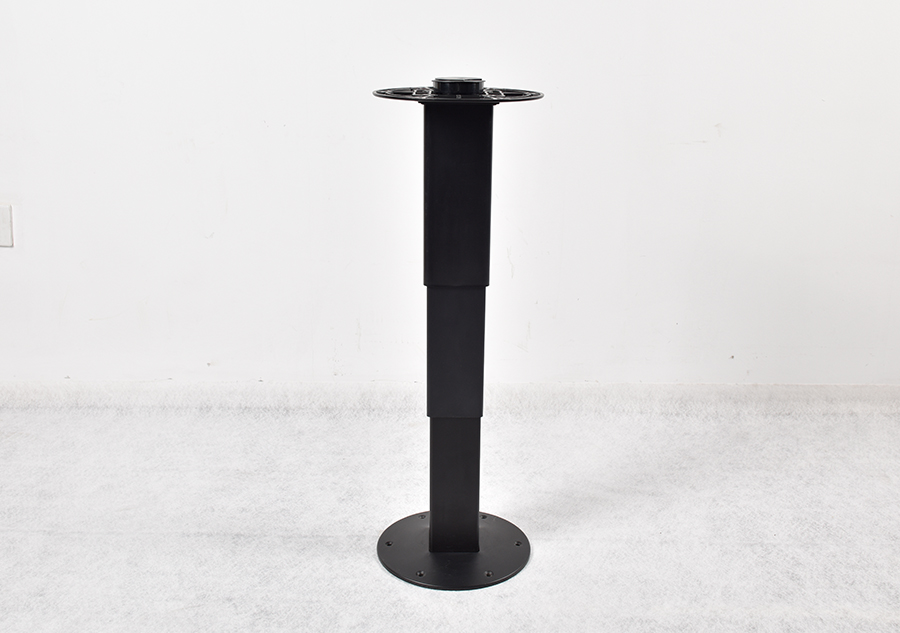

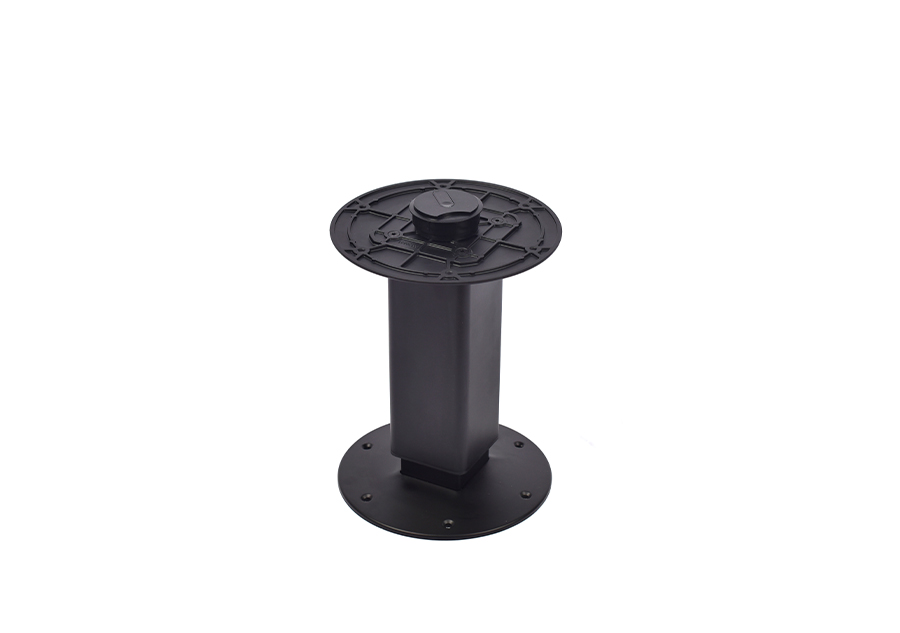

Pneumatic lift table leg - Basic

Product introduction

Type:66 35002 for 25mm table board

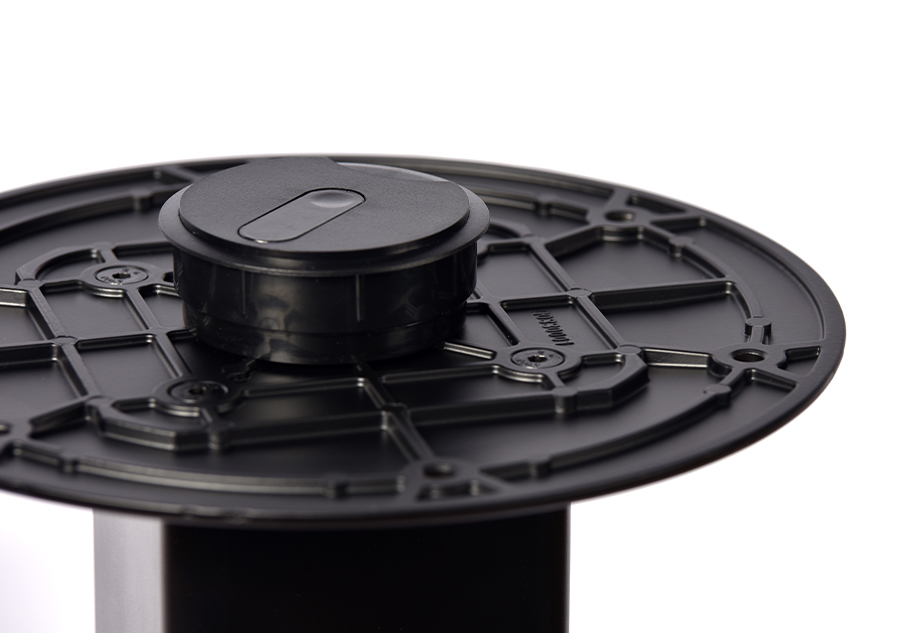

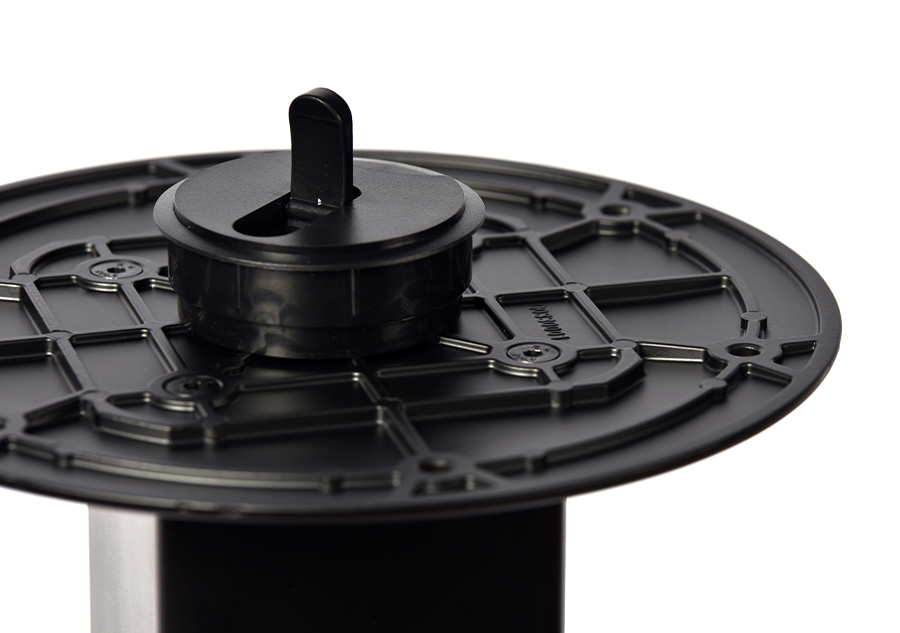

Characteristic:The upper and lower plates are 6-hole cast aluminum flanges (Φ240mm)

Color:Black-RAL9005

Height:310-705(±5mm)

Stroke:395±3mm

Materials:Steel, Aluminum alloy

Surface treatment:Powder spraying

Net weight:6.75kg

Gross weight:7.45kg

Packing box size:290mm*290mm*385mm


Product Details

Attention:

1. Recommend installing panels of appropriate size (≤800*800);

2. Optional fixed chassis or 360 ° rotating chassis;

3. There is an air spring inside, please do not press quickly or forcefully. It is advisable to slowly and uniformly press down;

4. The static bearing capacity of the product is Max ≈ 80kg at the lowest position and Max ≈ 40kg at other heights. Do not stand or jump on the product, do not apply impact or lateral force;

5. The standard temperature range for the product is -15 ℃~+45 ℃;

6. During driving, please try to lower the lifting table to the lowest position or lower the height as much as possible。
